SOIC/SSOP/TSSOP Breakout Boards

£3.95£6.95

These are double-sided breakout boards for surface mount SOIC components on one side and SSOP/TSSOP components on the other.

Clear
SKU: PACKOM0003 Category:

Description

These are double-sided breakout boards for surface mount SOIC components on one side and SSOP/TSSOP components on the other.

There are 2 models available:

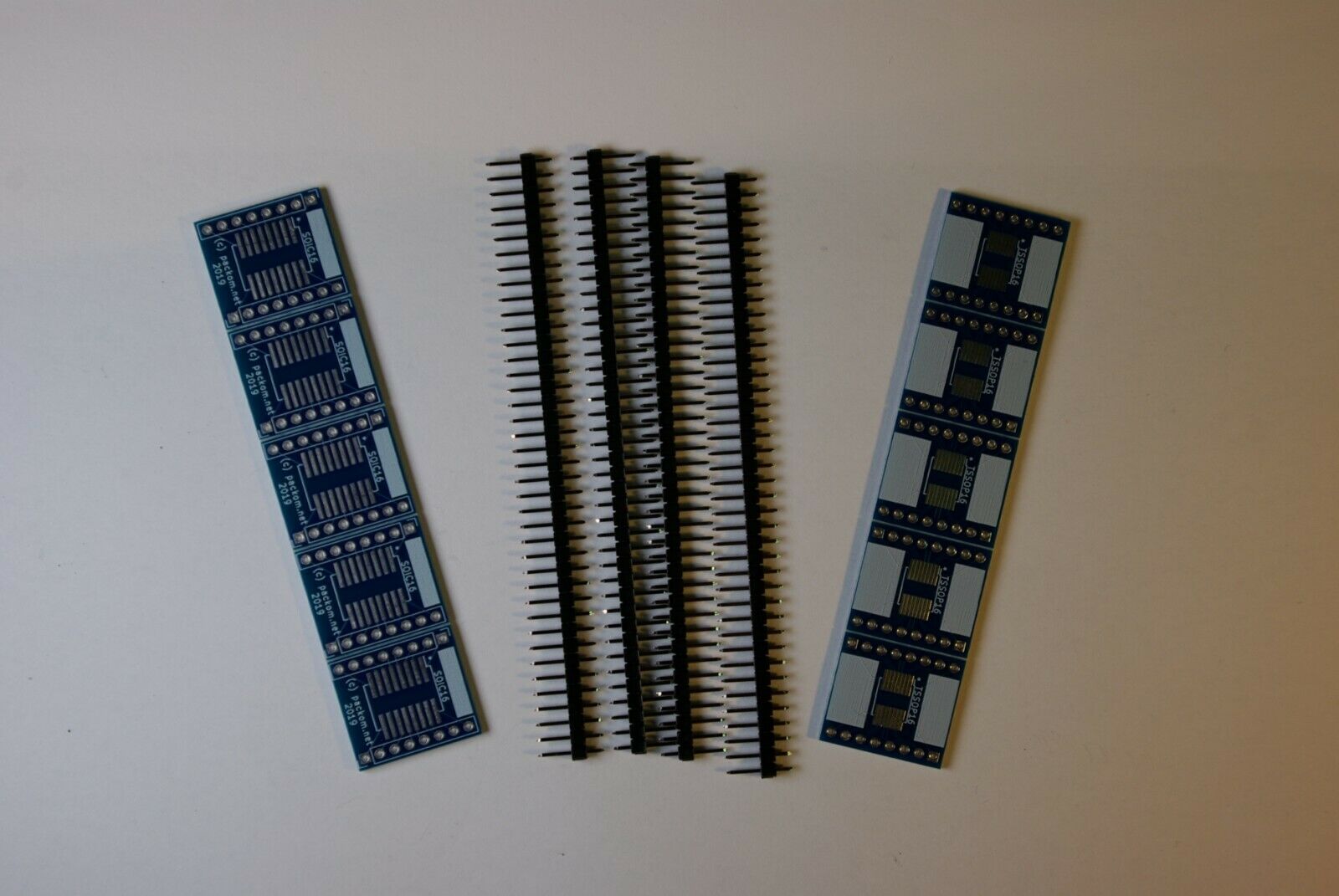

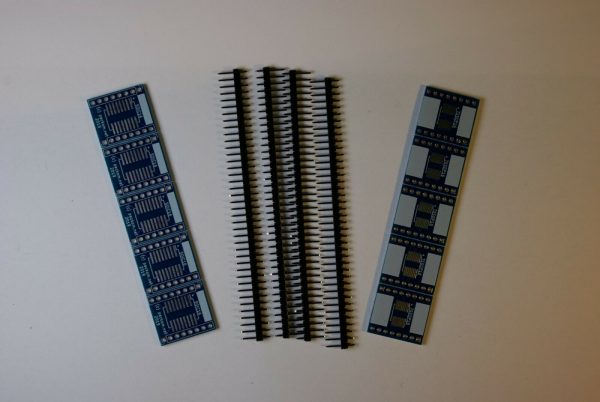

  • A 16-pin variant, which can also be used with components with fewer pins, such as 4, 8 and 12 pin ICs.

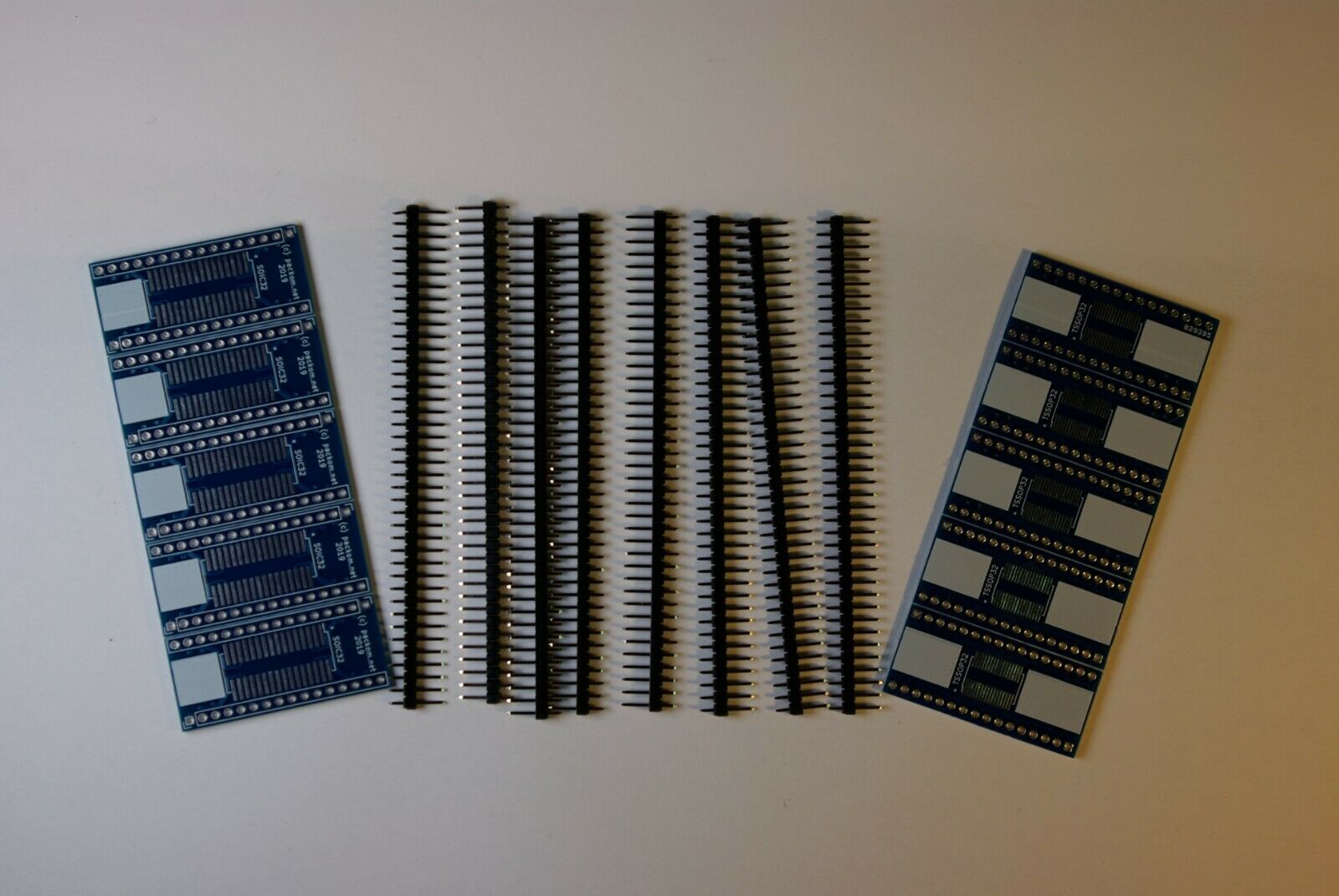

  • A 32-pin variant, which can also be used with components with fewer pins, such as 28, 24 and 20 pin ICs (and obviously 4, 8, 12 and 16 pin ICs).

Both sides include a silk-screen area where you can write the component name (with a Sharpie or similar permanent marker).  No more forgetting what component is on your breakout board or needing to get out the magnification to check!

These are high quality, 1.6mm thick FR-4 circuit boards.  The rows of pins are centred at .6″ to make insertion into breadboards easy.

SSOP pin pitch is 1.27mm (0.05″).
TSSOP pin pitch is 0.65m (0.025″).

The price is for 5 or 10 boards, and includes the header pins for you to solder yourself.

Includes free shipping to the UK.  Shipping to other destinations will be calculated at checkout

Doesn’t include breadboard or any other components.
